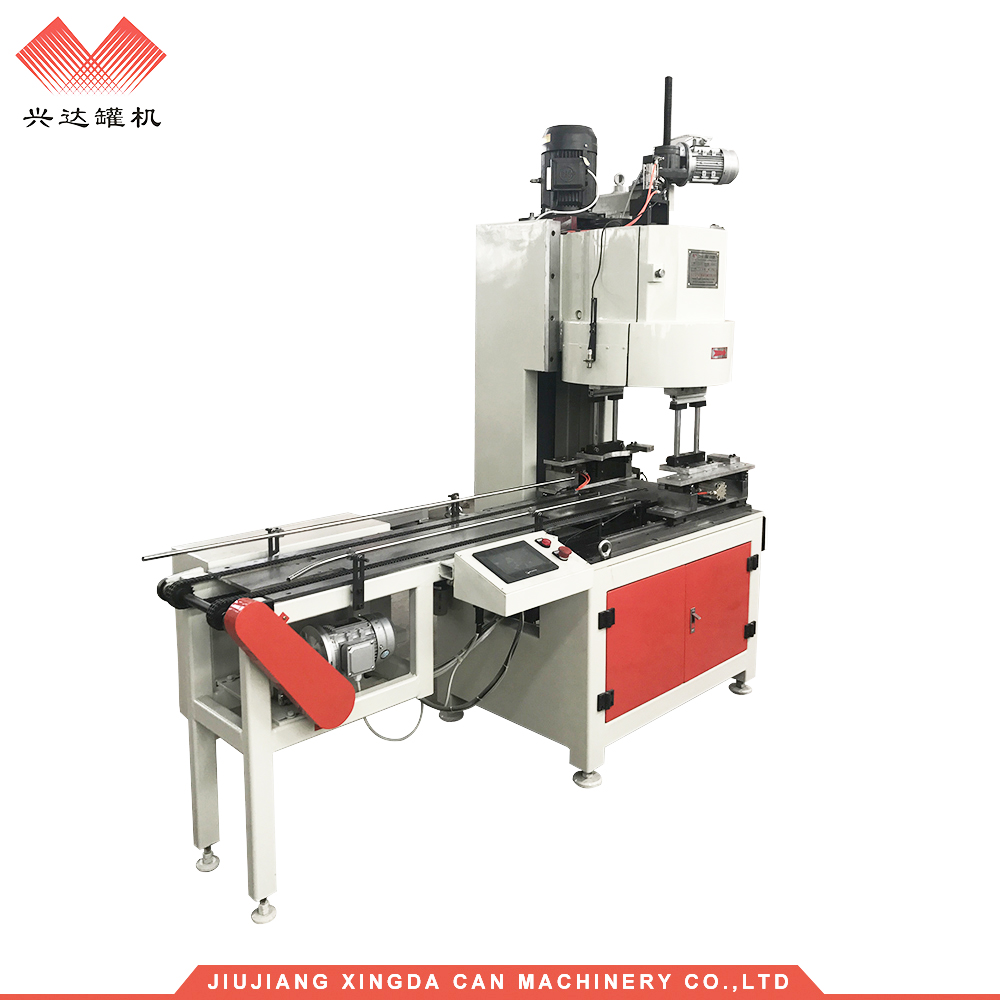

1.Usage
Use for round can sealing the lid or bottom
2. Main technical Parameters
Production capacity: 15-20 PCS /min
Head speed: 400 rev/min
Sealing range
Outside diameter: 200-300 - mm
Height: 180-400 - mm
Main motor y112m-6, 2.2kw, 940 rev/sub
Conveyor motor Conveyor motor: RV040-20 - B3, 0.37 KW, 70 rev/sub two 0.5 KW two stepper motor 0.5 KW stepper motor
Dimensions: 1040 * 630 * 1690mm
Weight: 1500kgs
