1.Usage

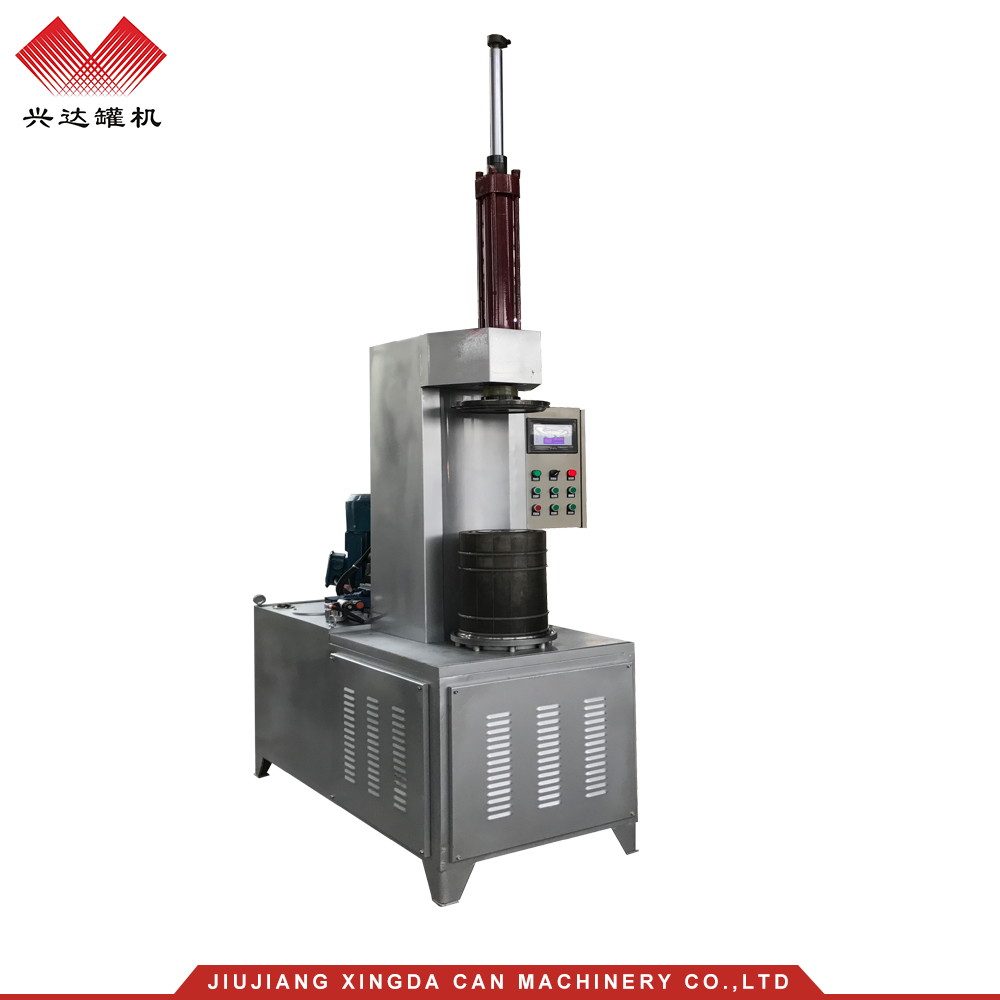

This machine is Hydraulic body bilge muscle flanging Hydraulic machine, informs the for the can body tendon - expanding and flanging
Main technical parameters
Suitable diameter of the tank body :220-300mm
Suitable height: Max 365mm
Tinplate thickness is 0.23-0.45mm
Production capacity:10pcs/min
Dimension:1500*900*2300mm
Net weight:1080kgs
Consumption :5kw
